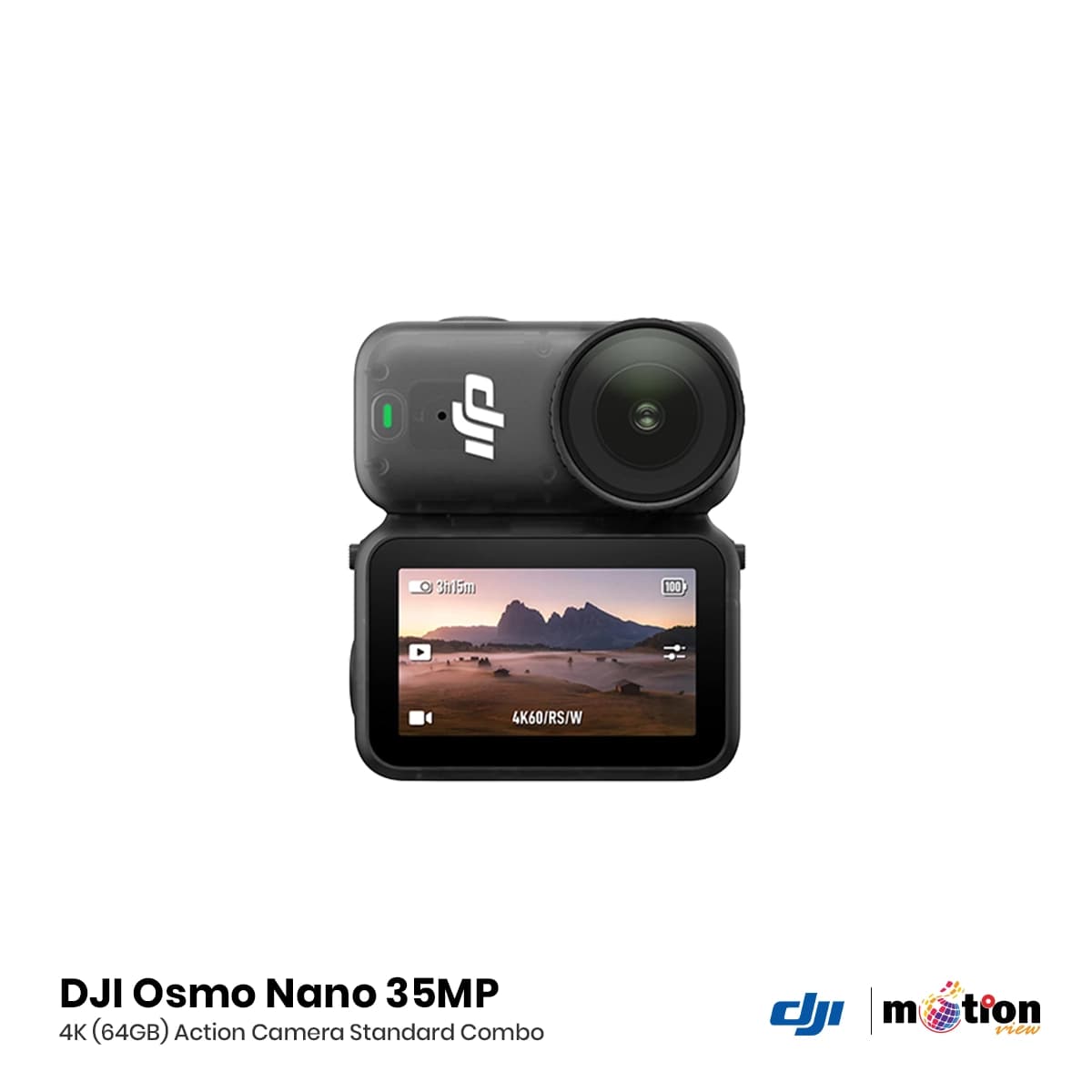

DJI Osmo Nano Action Camera Standard Combo

DJI Osmo Nano 35MP 4K Action Camera Standard Combo – Technical Specifications

---

General Information

• Brand: DJI

• Model: Osmo Nano

• Version: Standard Combo (Includes Camera + Multifunctional Vision Dock)

• Body Type: Action Camera (Modular Wearable)

• Color: Black

• Warranty: 1‑Year DJI Warranty (except accessories)

• Country of Origin: China

---

Camera & Image Sensor

• Sensor: 1/1.3‑inch CMOS

• Effective Resolution: 35 MP (6880 × 5160)

• Pixel Size: 2.4 μm

• Lens FOV: 143° ultra‑wide

• Aperture: f/2.8

• Focus Range: 0.35 m to infinity (fixed focus, no AF)

• Dynamic Range: Up to 13.5 stops

---

Photo & Video Performance

• Photo Modes: Single, Countdown (0.5‑10s), Burst (up to 30 images/3s)

• Image Format: JPEG, RAW

• Max Video Resolution: 4K 60fps (16:9), 4K 30fps (4:3)

• Slow Motion: 4K 120fps (4x), 1080p 240fps (8x)

• Hyperlapse/Timelapse: 4K/2.7K/1080p with multiple intervals & durations

• Video Format: MP4 (HEVC / H.265)

• Max Video Bitrate: 120 Mbps

• Color Modes: 10‑bit & D‑Log M

• Stabilization: RockSteady 3.0 (EIS) + HorizonBalancing

• Special Modes: SuperNight (low‑light), Auto Recording, Nod/Pat Recording, Pre‑Rec (5s‑5min)

---

Display & Touchscreen

• Screen Size: 1.96‑inch OLED

• Touchscreen: Yes (capacitive)

• Resolution: 314 × 556 pixels (326 PPI)

• Max Brightness: 800 cd/m²

• Live View: Yes (remote view via app also available)

---

Audio & Connectivity

• Microphones: 2 built‑in stereo microphones

• Audio Format: 48 kHz, 16‑bit AAC

• Direct Mic Connection: Supports up to two DJI microphones via OsmoAudio (no receiver needed)

• Connectivity: Wi‑Fi 6, Bluetooth 5.1 (Camera) / 5.4 (Dock), USB‑C (USB 3.1)

• File Transfer: Up to 600 MB/s via Wi‑Fi 6

• Memory: 128 GB internal + microSD slot (supports up to 1 TB, U3 V30 recommended)

---

Durability & Mounting

• Waterproof (Camera only): Up to 10 meters

• Splash‑proof (with Dock): IPX4 rating

• Mounting: Dual‑sided magnetic design; includes hat clip, lanyard, ball‑joint adapter, protective case

• Modularity: Camera can be used separately or attached to the Multifunctional Vision Dock

---

Battery & Power

• Camera Battery: 530 mAh, 3.85V Li‑ion (2.041 Wh)

• Vision Dock Battery: 1300 mAh, 3.87V Li‑ion (5.031 Wh)

• Battery Life (CIPA Standard):

  • Camera only: 90 minutes

  • Camera + Dock: 200 minutes

• Endurance Mode: >50 minutes continuous 4K/60fps recording

• Fast Charging: 20‑min charge to ~80%

• Operating Temperature: -20°C to 45°C

---

Dimensions & Weight

• Camera: 57.3 × 29.5 × 28 mm; 52 g

• Vision Dock: 59.1 × 42.2 × 22.3 mm; 72 g

• Transmission Range (Camera‑Dock): 10 m wireless

---

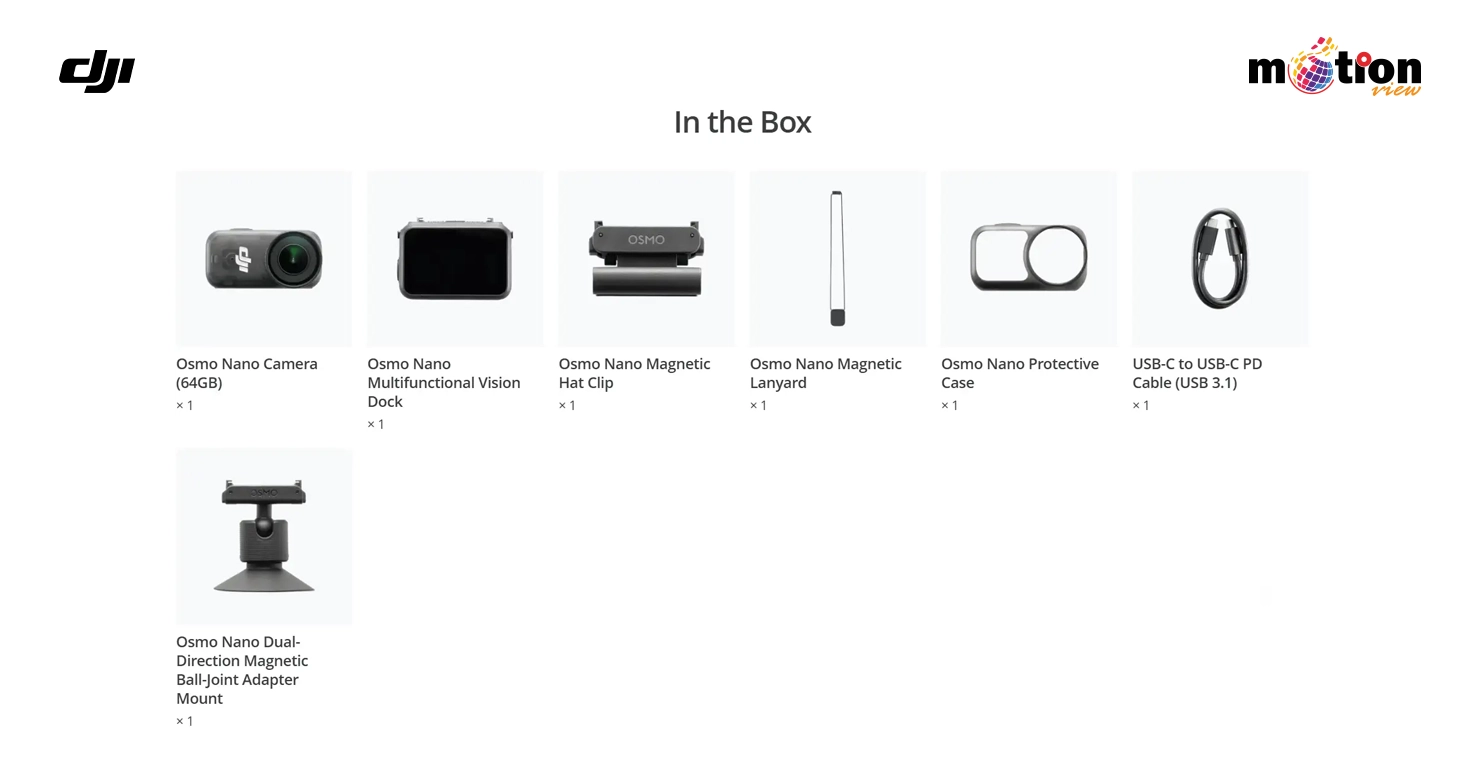

What’s in the Box (Standard Combo)

• Osmo Nano Camera × 1

• Osmo Nano Multifunctional Vision Dock × 1

• Magnetic Hat Clip × 1

• Magnetic Lanyard × 1

• Protective Case × 1

• USB‑C to USB‑C PD Cable (USB 3.1) × 1

• Dual‑Direction Magnetic Ball‑Joint Adapter Mount × 1

---

Key Features

• Modular & Magnetic: Ultra‑lightweight, wearable design with versatile mounting.

• Pro‑grade Imaging: Large 1/1.3‑inch sensor with 10‑bit D‑Log M color.

• Advanced Stabilization: RockSteady 3.0 + HorizonBalancing for smooth footage.

• Direct Mic Connection: Connect two DJI mics without a receiver.

• Wi‑Fi 6 Fast Transfer: High‑speed file offload and live view.
