Xiaomi

<h1>Hardware configuration</h1>

Mi Router 4C

Hardware
configuration

ProcessorMT7628DA

Internal memory64MB DDR2

2.4GhzIntegrated LNA and PA

5GHzNot supported

Heat dissipationNatural heat dissipation

Operating humidity:10%&ndash;90% RH (no condensation)

Storage humidity:5%&ndash;90% RH (no condensation)

Protocol standardsIEEE 802.11b/g/n
IEEE 802.3/3u

ROM16MB NorFlash

2.4GHz Wi-Fi2x2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps)

5GHz Wi-FiNot supported

Antennas4x external single band antennas

Operating temperature:0&ndash;40&deg;C

Storage temperature:-40&ndash;70&deg;C

Certification standardsGB9254-2008
YD/T993-1998
GB4943.1-2011

Hardware interfaceTwo 10/100M self-adaptive LAN ports (Auto MDI/MDIX)
One system factory settings reset button
One orange/blue/purple system status light; one blue external network interface status light
One 10/100M self-adaptive WAN port (Auto MDI/MDIX)
One power input interface

&nbsp;

Wireless specifications

Singal band2.4GHz

Modulation11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15

Reception sensitivity11Mbps: &le; -85dBm, 54Mbps: &le; -72dBm, HT20 MCS7: &le; -69dBm, HT40 MCS7: &le; -66dBm

Software specifications

Operating systemMi WiFi ROM intelligent router operating system based on a highly customized version of
OpenWRT that supports web, Android, and iOS router management software

Wireless securityWPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding

Management applicationSupports web, iOS, and Android

Package contents

<img alt="" src="https://i01.appmifile.com/webfile/globalimg/products/pc/mi-router-4c/specs-0201.jpg" />

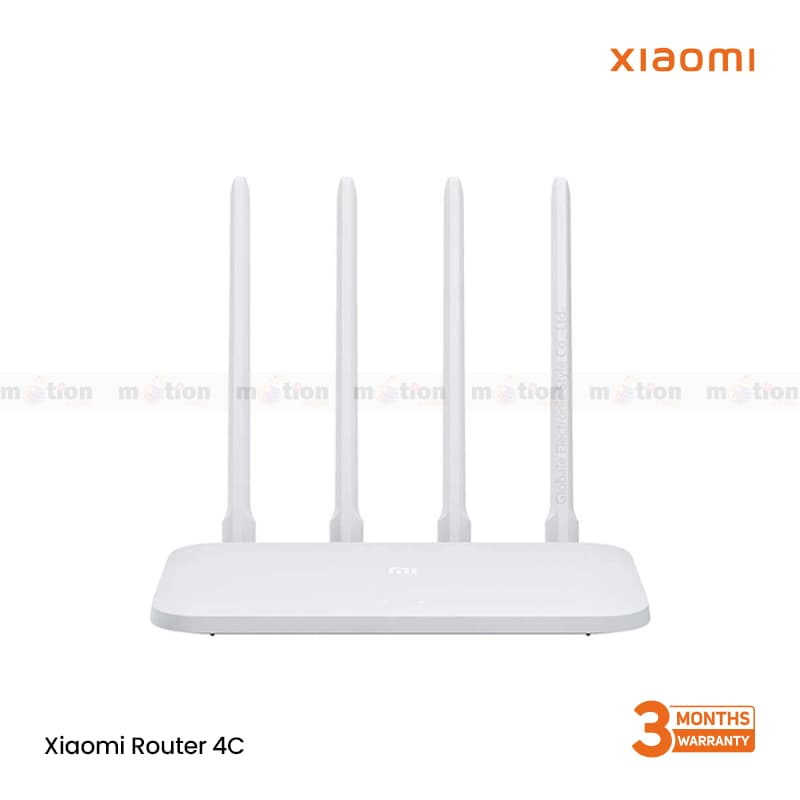

Mi Router 4C

<img alt="" src="https://i01.appmifile.com/webfile/globalimg/products/pc/mi-router-4c/specs-0202.jpg" />

User manual

<img alt="" src="https://i01.appmifile.com/webfile/globalimg/products/pc/mi-router-4c/specs-0203.jpg" />

Power adapter

Xiaomi Wi-Fi Router 4C 300Mbps Global Version

<ul>
	<li>Brand: Xiaomi</li>
	<li>Router Connectivity Type: Ethernet, Wireless</li>
	<li>Transmission Rate: 300Mbps</li>
	<li>Speed of Ethernet Port: 10/100Mbps</li>
	<li>Network Protocols: IEEE 802.11b/g/n,IEEE 802.3/3u</li>
	<li>Wireless Standard: Wireless AC</li>
	<li>Wireless Security: WPA-PSK,WPA2-PSK</li>
	<li>Processor: MT76228DA</li>
	<li>RAM: 64MB DDR2</li>
	<li>WiFi Distance: 10m</li>
</ul>

Welcome to the Biggest Eco Products Collection in Bangladesh

General Information

Model No

4C R4CM

Network Standards

IEEE 802.11b/g/n IEEE 802.3/3u

Band

4x external single band antennas

Data Transfer Rates

300Mbps

Processorr

MT7628DA

Storage

64MB DDR2

Version

Global

Frequency

2.4 GHz
